XSectScan

Analyse cross section images of vessel diameters

Usage

OBJ = XSectScan(NAME, RAWIMG, CONFIG, CH, ISDP)

Arguments

• NAME is the name for this LineScanVel object.
• RAWIMG is the RawImg object that will be used to create the LineScanVel object.
• CONFIG contains the configuration parameters needed for the calcDiameter object.
• CH specifies the channel to be used for calculating the diameter.
• ISDP specifies whether the vessel lumen to analyse is bright (i.e. positively labelled) or dark (i.e. negatively labelled).

Details

XSectScan objects are used to analyse the diameters of vessels using axial cross section images. Typically, the vessel lumen will be labelled by a fluorescent marker, like a dextran conjugated fluorophore (e.g. FITC), but the method also works with a negatively labelled vessel lumen (e.g. everything but the vessel lumen is labelled).

See Also

• XSectScan class documentation
• ConfigDiameterTiRS class documentation
• CalcDiameterTiRS class documentation
• ImgGroup class documentation
• ImgGroup quick start guide

Examples

The following examples require the sample images and other files, which can be downloaded manually, from the University of Zurich website (http://www.pharma.uzh.ch/en/research/functionalimaging/CHIPS.html), or automatically, by running the function utils.download_example_imgs().

Create a XSectScan object interactively

The following example will illustrate the process of creating a XSectScan object interactively, starting with calling the constructor.

% Call the XSectScan constructor
xss01 = XSectScan()

Since no RawImg has been specified, the first stage is to select the type of RawImg to create. Press three and then enter to select the SCIM_Tif.

----- What type of RawImg would you like to load? -----

  >> 1) BioFormats
     2) RawImgDummy
     3) SCIM_Tif

Select a format: 3

Then, use the interactive dialogue box to select the raw image file xsectscan_scim.tif, which should be located in the subfolder tests>res, within the CHIPS root directory.

Use the interactive dialogue box to select the dummy calibration (calibration_dummy.mat):

The next stage is to define the ‘meaning’ of the image channels. The first channel is not needed for now, and the second channel represents the blood plasma. Press enter, followed by 1 and then enter, to complete the selection.

----- What is shown on channel 1? -----

  >> 0) <blank>
     1) blood_plasma
     2) blood_rbcs

Answer:

----- What is shown on channel 2? -----

  >> 0) <blank>
     1) blood_plasma
     2) blood_rbcs

Answer: 1

We have now created a XSectScan object interactively.

xss01 =

  XSectScan with properties:

   calcDiameter: [1x1 CalcDiameterTiRS]
   channelToUse: 2
   isDarkPlasma: 0
       plotList: [1x1 struct]
          state: 'unprocessed'
           name: 'xsectscan_scim'
         rawImg: [1x1 SCIM_Tif]

The process is almost exactly the same to create an array of XSectScan objects; when the software prompts you to select one or more raw images, simply select multiple images by using either the shift or control key.

Prepare a RawImg for use in these examples

% Prepare a rawImg for use in these examples
fnRawImg = fullfile(utils.CHIPS_rootdir, 'tests', 'res', ...
    'xsectscan_scim.tif');
channels = struct('blood_plasma', 2);
fnCalibration = fullfile(utils.CHIPS_rootdir, 'tests', 'res', ...
    'calibration_dummy.mat');
calibration = CalibrationPixelSize.load(fnCalibration);
rawImg = SCIM_Tif(fnRawImg, channels, calibration);

Opening xsectscan_scim.tif: 100% [=================================]

Create a XSectScan object without any interaction

% Create a XSectScan object without any interaction
nameXSS02 = 'test XSS 02';
configTiRS = ConfigDiameterTiRS();
xss02 = XSectScan(nameXSS02, rawImg, configTiRS)

xss02 =
  XSectScan with properties:

    calcDiameter: [1×1 CalcDiameterTiRS]
    channelToUse: 2
    isDarkPlasma: 0
        plotList: [1×1 struct]
           state: 'unprocessed'
            name: 'test XSS 02'
          rawImg: [1×1 SCIM_Tif]

Create a XSectScan object with a custom config

% Create a XSectScan object with a custom config
configCustom = ConfigDiameterTiRS('thresholdFWHM', 0.65, ...
    'thresholdInv', 0.35);
xss03 = XSectScan('test XSS 03', rawImg, configCustom);
confDiam = xss03.calcDiameter.config

confDiam =
  ConfigDiameterTiRS with properties:

     connectivity: 8
    thresholdFWHM: 0.6500
     thresholdInv: 0.3500
     thresholdSTD: 3

Create a XSectScan object array

% Create the RawImg array first
rawImgArray(1:3) = copy(rawImg);
rawImgArray = copy(rawImgArray)

rawImgArray =
  1×3 SCIM_Tif array with properties:

    filename
    isDenoised
    isMotionCorrected
    metadata_original
    name
    rawdata
    t0
    metadata

% Then create a XSectScan object array
xssArray = XSectScan('test XSS Array', rawImgArray, configCustom)

Warning: All of the RawImg objects are assumed to have the same channel
structure. If this is not true, the processing will not work as expected; in
this case you will need to create the objects seperately.
xssArray =
  1×3 XSectScan array with properties:

    calcDiameter
    channelToUse
    isDarkPlasma
    plotList
    state
    name
    rawImg

Process a scalar XSectScan object

% Process a scalar XSectScan object
xss03 = xss03.process()

Calculating diameter: 100% [=======================================]
xss03 =
  XSectScan with properties:

    calcDiameter: [1×1 CalcDiameterTiRS]
    channelToUse: 2
    isDarkPlasma: 0
        plotList: [1×1 struct]
           state: 'processed'
            name: 'test XSS 03'
          rawImg: [1×1 SCIM_Tif]

Process a XSectScan object array (in parallel)

% Process a XSectScan object array (in parallel).
% This code requires the Parallel Computing Toolbox to run in parallel
useParallel = true;
xssArray = xssArray.process(useParallel);
xssArray_state = {xssArray.state}

Processing array: 100% [===========================================]
xssArray_state =
  1×3 cell array
    'processed'    'processed'    'processed'

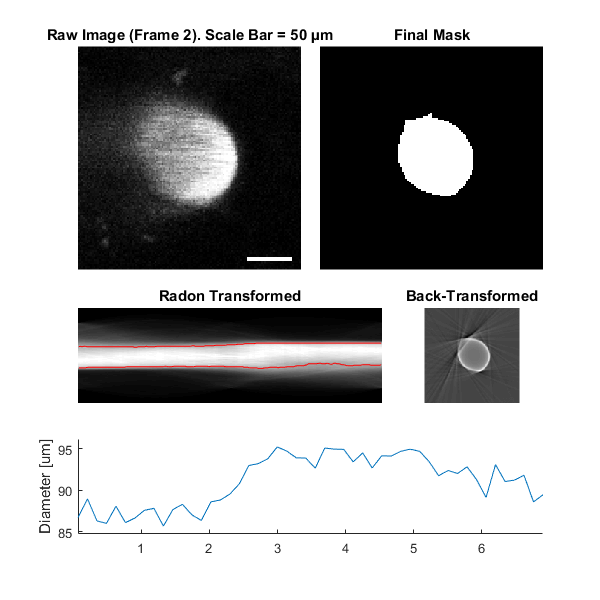

Plot a figure showing the output

% Plot a figure showing the output
hFig03 = xss03.plot();
set(hFig03, 'Position', [50, 50, 600, 600]);

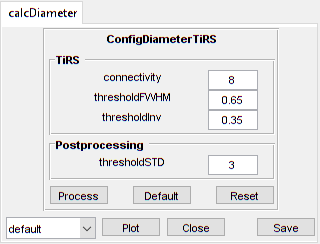

Produce a GUI to optimise the parameters

% Produce a GUI to optimise the parameters
hFigOpt = xss03.opt_config();

Output the data

% Output the data.  This requires write access to the working directory
fnCSV03 = xss03.output_data('xss02', 'overwrite', true);
fID03 = fopen(fnCSV03{1}, 'r');
fileContents03 = textscan(fID03, '%s');
fileContents03{1}{1:5}
fclose(fID03);

ans =
    'time,diameter,areaPixels,maskSTD,mask'
ans =
    '0.070,86.702,1476,FALSE,FALSE'
ans =
    '0.209,88.963,1554,FALSE,FALSE'
ans =
    '0.348,86.290,1462,FALSE,FALSE'
ans =
    '0.488,85.994,1452,FALSE,FALSE'
